Control DOM & CSS classes

Common classes for all controls​

  • cfgr-ctrl
  • cfgrctrl-disabled

Label​

div.cfgr-label

div.cfgrctrl-innerlabel

Buttons​

  • Button
  • Checkout Button
  • Share Button
  • Wizard navigator button
button.cfgr-btn.cfgr-checkoutbtn.cfgr-sharebtn.cfgr-wizardbtn.cfgrctrl-pressed
div.cfgrctrl-innerlabel
info

The inner structure of an upload button differs a little.

Textbox​

div.cfgr-textbox
label.cfgrctrl-caption
input.cfgrctrl-field.cfgrctrl-input
info

The input element is a textarea for multiline textboxes

Checkbox & Radiobutton​

  • Checkbox
  • Radiobutton
div.cfgr-checkbox.cfgr-radiobutton.cfgrctrl-pressed
label.cfgrctrl-caption
div.input-wrapper
input.cfgrctrl-input.cfgrctrl-field:checked:disabled
label.custom-bckgr

Panel, Layer & Wizard Page​

  • Panel
  • Layer
  • Wizard Page
div.cfgr-container.cfgr-panel.cfgr-layer.cfgr-wizardpage.cfgrctrl-withheader.cfgrctrl-collapsible.cfgrctrl-expanded.cfgrctrl-collapsed
div.cfgr-container-header
label.cfgr-container-headerlabel
div.cfgrctrl-collapse-icon
div.cfgr-container-inner
Child controls

click to expand

Wizard & Wizard Navigator​

  • Wizard
  • Wizard navigator
div.cfgr-container.cfgr-panel.cfgr-wizard.cfgr-wizardnavigator
div.cfgr-container-inner
Wizard page Wizard navigator button

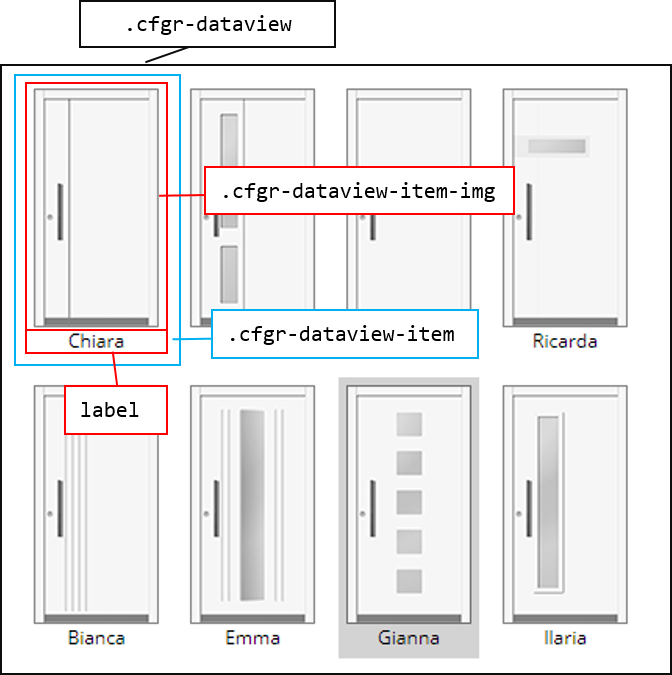

Dataview​

info

The divs for the image (".cfgr-dataview-item-img") and label are not there when using a custom layout with your dataview.

div.cfgr-panel.cfgr-dataview
div.cfgr-dataview-view
div.cfgr-dataview-item.cfgrctrl-hover.cfgrctrl-selected
div.cfgr-dataview-item-img
label

Combobox​

div.cfgr-combobox
label.cfgrctrl-caption
div.input-wrapper
div.x-form-item
div.x-form-item-body
div.x-form-trigger-wrap
div.x-form-text-wrap
input.cfgrctrl-field
div.x-form-trigger
div.cfgr-combobox-list
div.cfgr-combobox-list-list-ct
ul.x-list-plain
div.cfgr-combobox-item.cfgrctrl-hover.cfgrctrl-selected
label
div.cfgr-combobox-item-img

The inner structure of div.cfgr-combobox-item may vary depending on the value of the comboboxs Layout property.

The div.x-form-trigger is hidden in most themes since they implement the "drop down icon" using CSS after & before pseudo selectors.

Graphicview​

div.cfgr-graphicview
svg

External content​

  • External content
  • ShapeDiver 3d
div.cfgr-externalcontent.cfgr-shapediver3d
iframe.cfgr-iframe

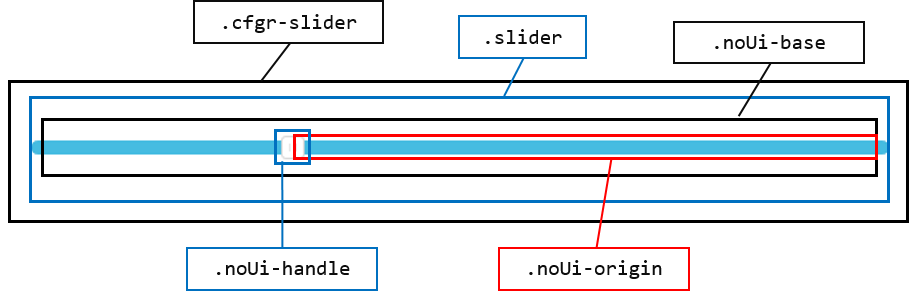

Slider​

div.cfgr-slider
div.slider
div.noUi-base
div.noUi-origin
div.noUi-handle

Viewer 3d​

div.cfgr-viewer3d
canvas
div.viewer-load-mask
div.viewer-load-mask-icon
div.viewer-load-mask-text
div.viewer-error-text
span
span.viewer-error-text-hide-icon

Augemented reality layer​

The viewers augmented reality layer is implemented in the "cfgr parent" control, to ensure that the layer is shown across the whole configurator an not only above the viewer control.

The layer still consists of viewer CSS classes and can be adapted accordingly.

div.viewer-ar-layer
div.viewer-ar-layer-content-panel
div.viewer-ar-layer-exit-icon
div.viewer-ar-layer-qr-code
span.viewer-ar-layer-sub-title
span.viewer-ar-layer-description
a.viewer-ar-layer-link
